Built: November 29, 1995 (mainboard probably start of 1994), Made in France

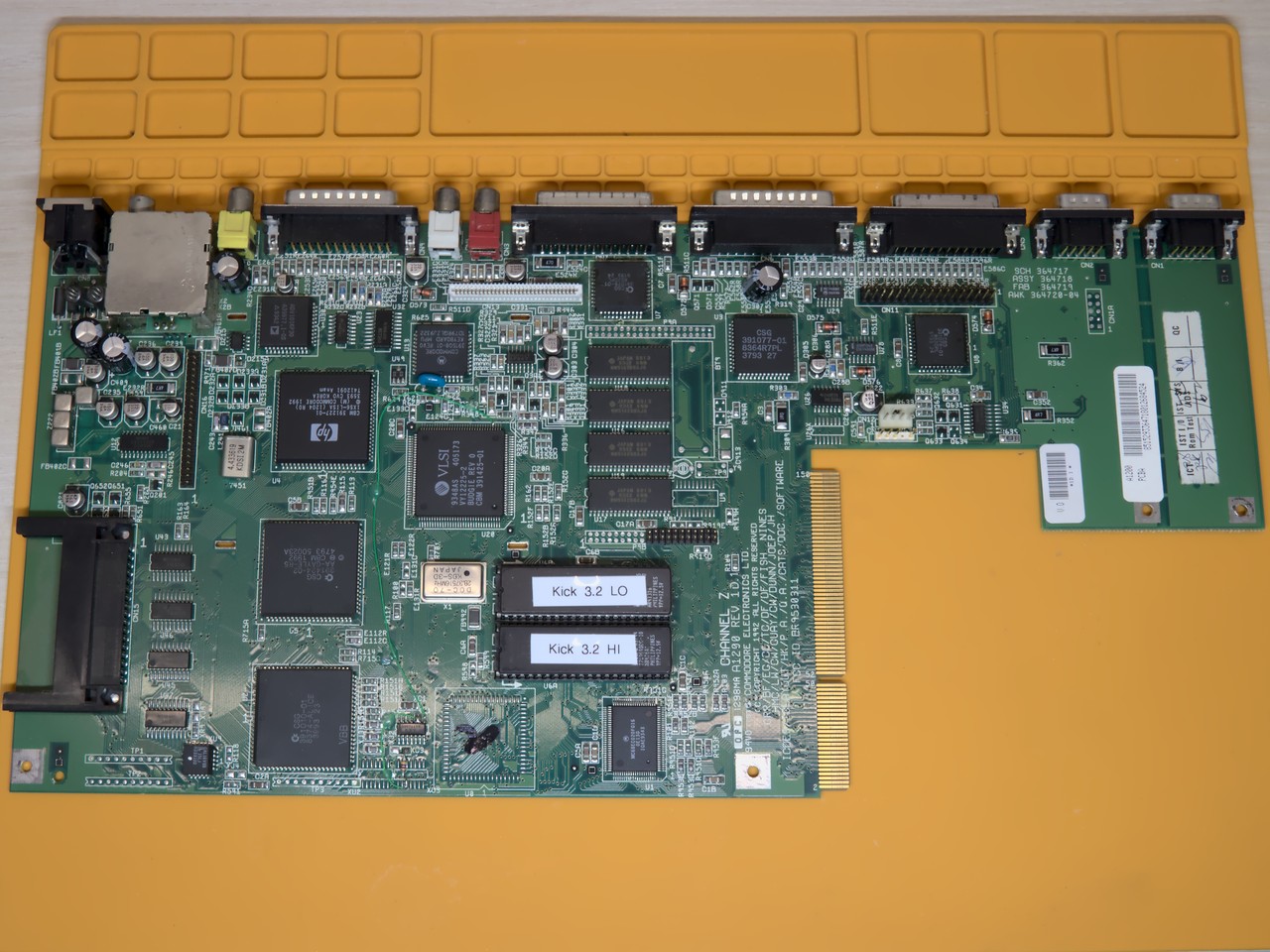

Mainboard: Revision 1D.1
CPU: 68030/33 (via ACA1234)
OS: AmigaOS 3.2.2
Chipset: AGA
Alice: 8374 (date code 3993)
Lisa: 1204R0 (HP, date code 3593)
Paula: 8364R7 (date code 3793)
Gayle: 391424-02 (rev 5, date code 4793)
Budgie: 391425-01 (rev 0, date code 4893)
RAM: 2 MB Chip RAM, 128 MB zero-waitstate Fast RAM on board of the ACA1234
Indivision AGA MK3 scandoubler with HDMI output
RTC extension
GOEX floppy drive simulator with OLED display
Custom LED colors (blue, green, red)
Trivia
Bought it in a bundle with an “Amiga Magic” cardboard box, and an A600 PSU.
Restauration Works
Restauration was carried out from July thru September 2021

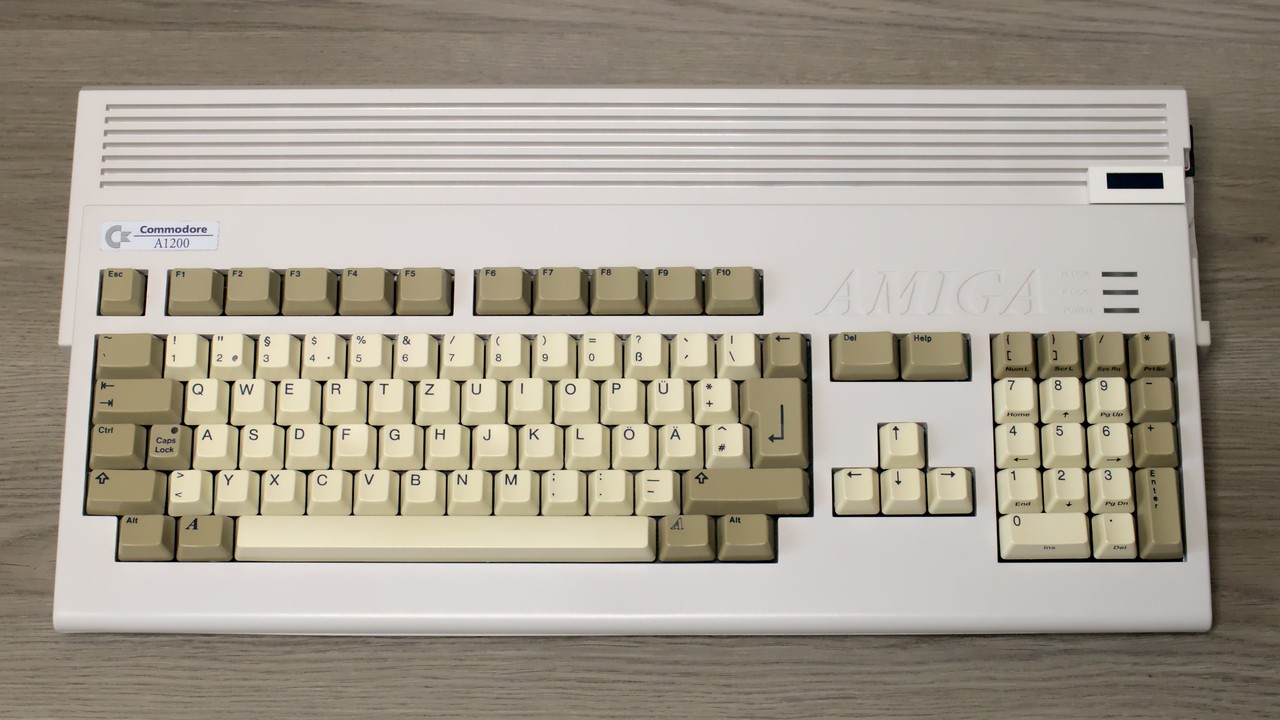

Replaced the keycaps with white replica. The case wasn’t yellowed at all and only needed some soap water.
Replaced all electrolytic capacitors with Panasonic (up to 10,000h lifetime) or Würth Elektronik (up to 5,000h lifetime) ones.
Replaced the floppy drive with a CenturionTech GOEX on pills floppy simulator + OLED display
Replaced the hard drive with a SD to IDE adapter and a raiser board that fixes the “LED always on” issue.
Replaced the cheap ESCOM sticker with a replica Commodore A1200 badge.
Replaced the original LED board with custom made LEDs (HDD: red, FDD: green, Power: blue).
Extended the system with a HDMI output, and an ACA1234 68030 turbo board.
Case was skewed due to a badly fitted keyboard frame. I removed some plastic noses on the left side, the keyboard now fits perfectly. I hope the plastic will adapt to the new position again.
Replaced many missing screws.
History
2024-10-05: Got an early a1200.net cardboard box for this machine
2023-10-29
Replaced the keycaps with white replica. The new keycaps are even whiter than the ultra-white case, but it looks better now.
2023-06-04
Whitened the keycaps in the sun, which made them a lot whiter. A bit of yellowing can still be seen in the ultra-white case though.
When opening the case, the GoEX encoder broke off. Fortunately I had another spare GoEX, but I need to repair the encoder now.
Upgraded EPROMs to AmigaOS 3.2.2
Changed the A1200 badge
2023-01-08: Replaced the GoEX OLED display with a tiny self-made OLED, like on the black Amiga.
2023-01-01: Replaced A1200 plastic badge with more beautiful vinyl badge
2021-12-24: Closed empty floppy eject hole with original button held by a printed frame
2021-12-11: Remove E123C and E125C, to fix stability issues with ACA1234
2021-11-20: Swapped ACA1211 with ACA1234/33 turbo board
2021-11-06
Replaced original LED board with custom LEDs (red, green, blue)
Replaced floppy drive with GOEX on pills and OLED display
2021-08-21
Added ACA1211 memory expansion
Added Indivision AGA MK3
Added SD card adapter and raiser board for fixing permanently lit drive LED
Replaced original Escom sticker with replica A1200 badge
2021-08-15: Keyboard returned from whitening
2021-08-15: Replaced all capacitors with Panasonic and Würth ones
2021-08-05: Keyboard sent in for cleaning and whitening
