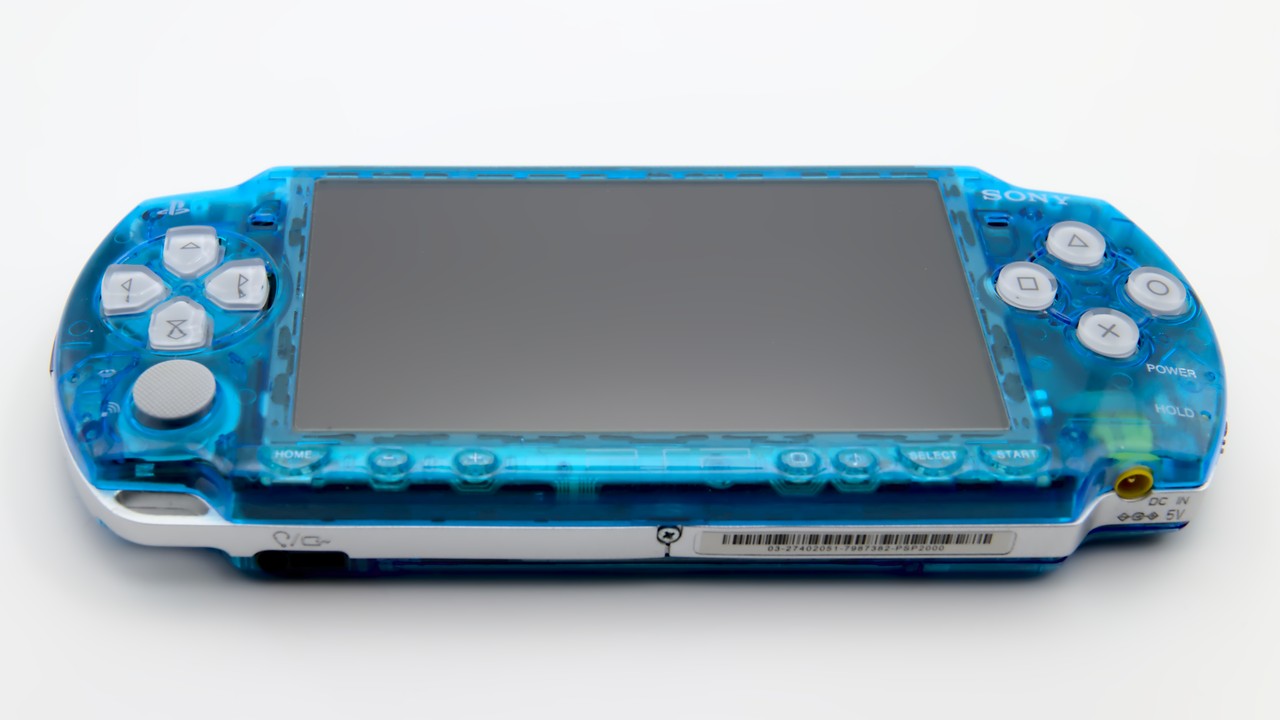

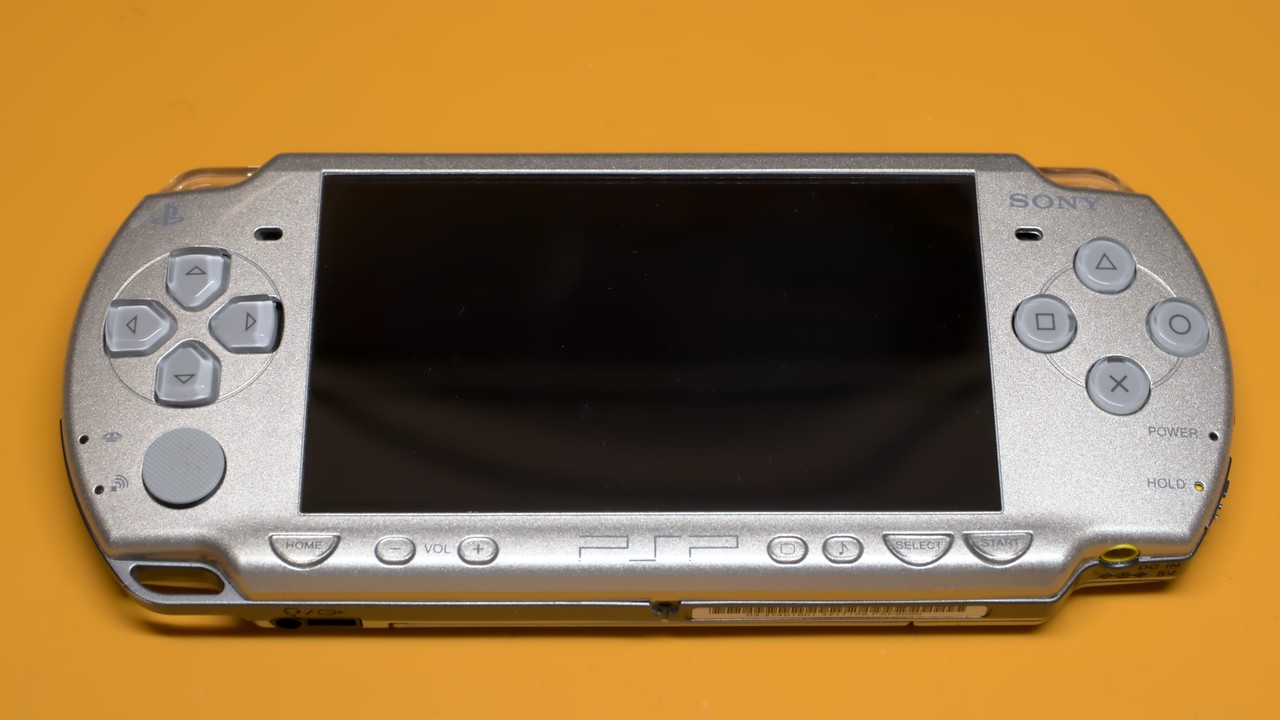

PlayStation Portable 2000, transparent blue (original color: ice silver)
Motherboard: TA-085v1 (Slim 2000, Generation 2)
CPU: MIPS R4000, up to 333 MHz
RAM: 64 MB (main) + 4 MB (graphics)
Display: 480 x 272 Pixel, True Color
32 GB MicroSD via MemoryStick Pro Duo adapter
Trivia
Was sold as working. After purchase, the seller remembered that the volume keys were broken.
This PSP seems to be a Japan import. It came with a Japanese manual, and probably has a Japanese regional code on the UMD. It’s fine for me, as I will use the console for homebrew software only.
Restauration Works
Came with a cheap and fake “2400mAh” battery. Replaced it with a high quality replica battery.
Polished a lot of micro scratches from display. Unfortunately in vain because the original case could not be rescued.
Could not remove overturned screws, so I cut open the original case, and moved the interior to a transparent blue replica case. However, I kept the original joystick head, directional buttons, fire buttons, shoulder buttons, and memory stick cover.
Volume buttons were unresponsive, so I replaced the membrane of the control buttons.
Installed Infinity patch and LME CFW.
Applied non-glossy screen protector.
History
2024-03-20
Bought a Go!explore full set with GPS receiver and software (DACH area)
UMD drive tested and confirmed working
2022-06-16
Installed new Custom Firmware
2022-06-12

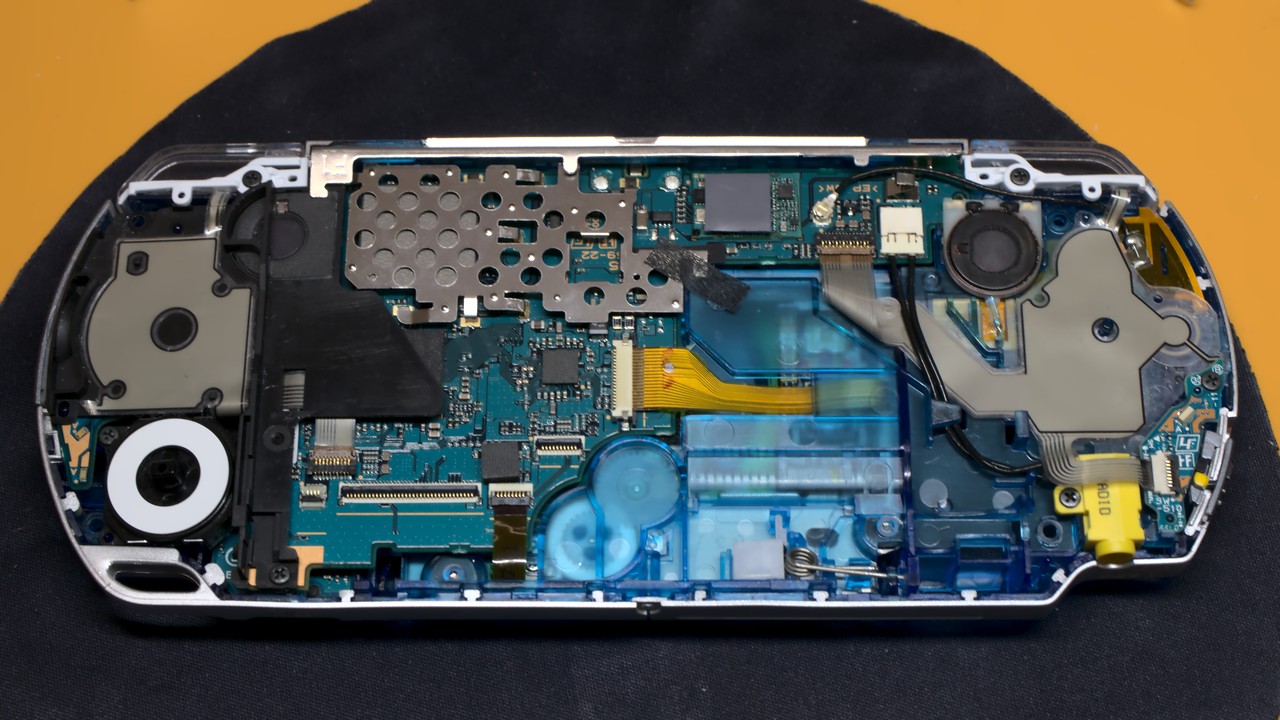

Moved entire interior to new replica case
Replaced broken command membrane with replacement part
