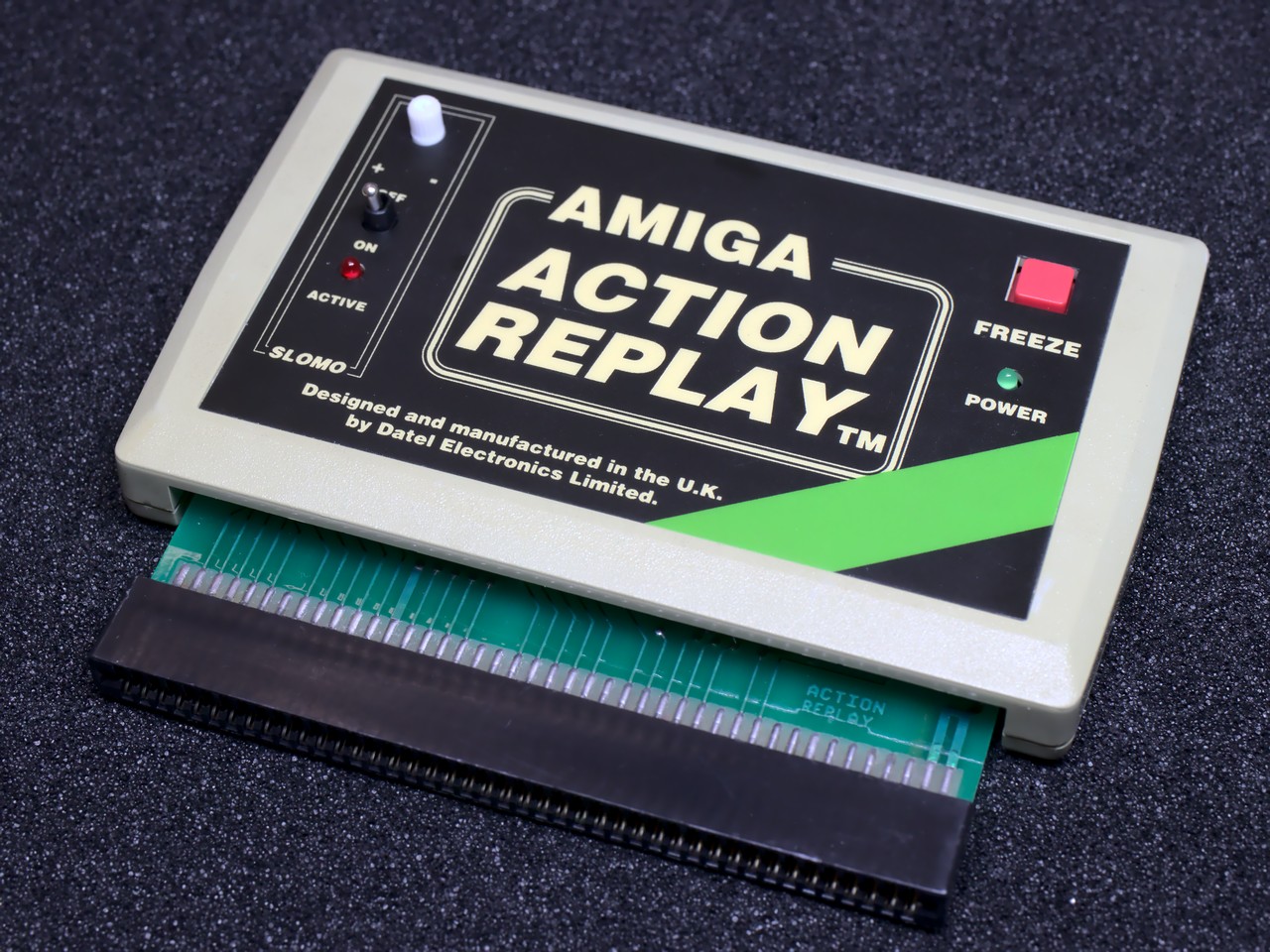

Datel Electronics Ltd Action Replay
Configuration
Restauration Works
- Case thorougly cleaned in an ultrasonic bath.

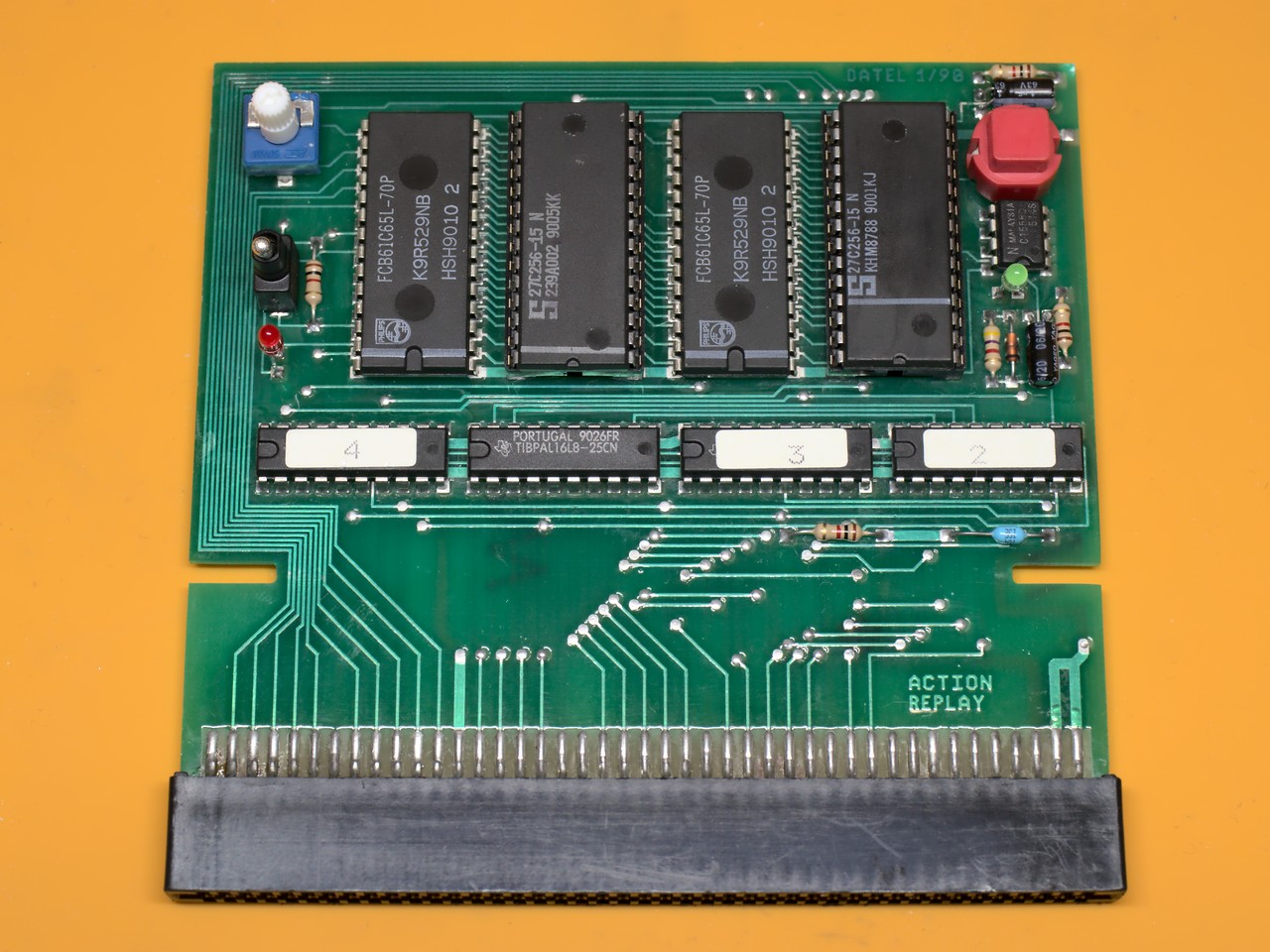

- PCB was filthy, thorougly cleaned it in an ultrasonic bath and washed with IPA.
- Preemptively replaced all mechanical parts (switch, key, potentiometer) and the LEDs.
- The original black potentiometer head was missing. I replaced it with a standard potentiometer head that was unfortunately only available in white.
- Replaced the two electrolytic caps with standard miniature types.
- Fixed the case with a drop of superglue.
- Whitened the case in the sun.
Trivia
- Was sold as broken, but after a thorough cleaning it was working fine.
History
- 2022-07-??: Whitened the case in the sun
- 2021-12-11
- Replaced all mechanical components with new ones
- Replaced LEDs with new ones
- Fixed the broken case by using superglue on the broken mounting bolts
- Tested to be functional
- Refurbishment completed
- 2021-11-21: Cleaned PCB in ultrasonic bath
- 2021-11-18: Date of purchase
