Custom LED colors (blue, green, red), custom caps lock LED color (blue)
Trivia

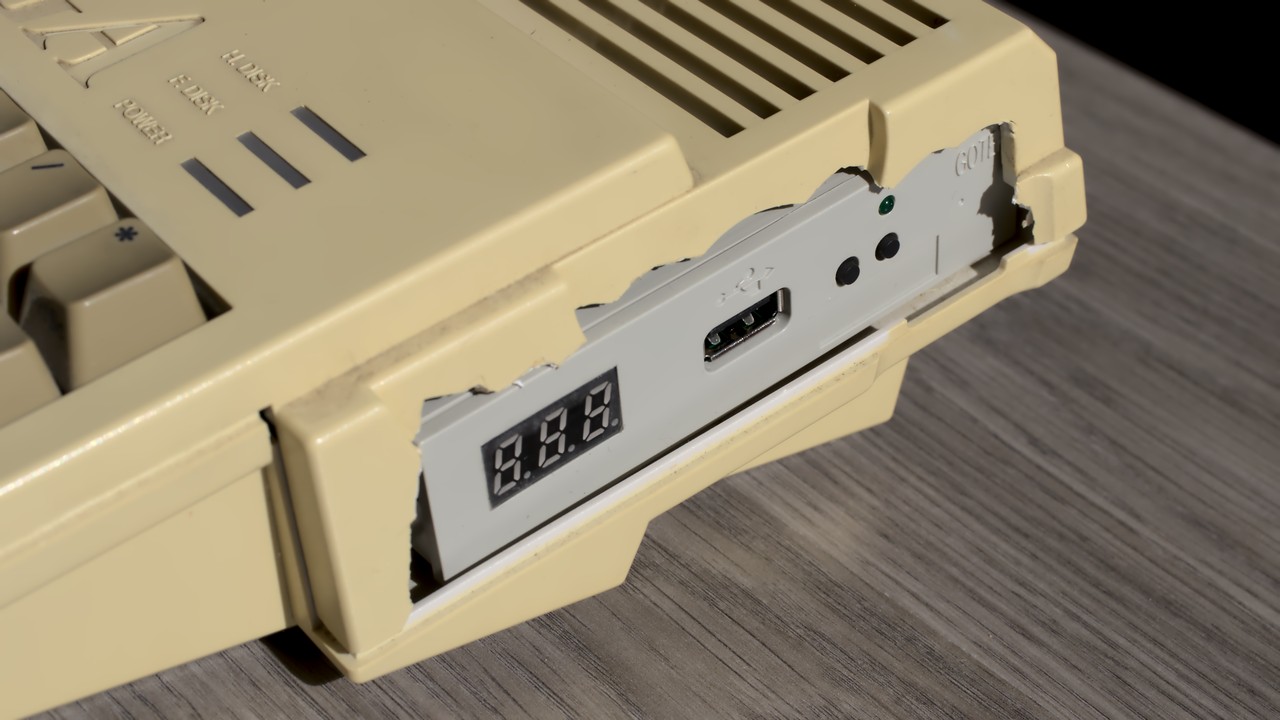

The original owner tried to mount a Gotek drive, but did a poor job cutting out the drive bezel, ruining the original case.

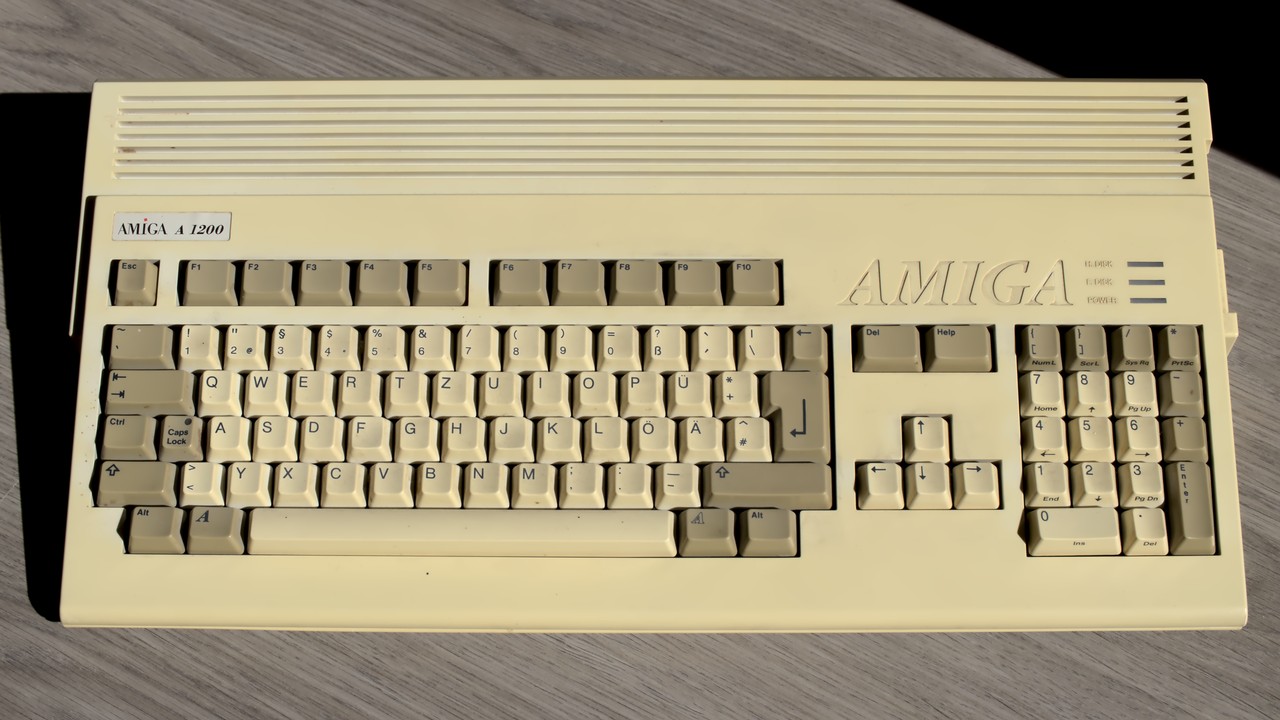

Machine was heavily yellowed.
It came with a Marpet Developments M1207 Expansion that provides up to 8MB RAM, RTC, and an FPU slot. It was equipped with a 4MB DIMM. An 8MB DIMM is on storage, but it would interfere with the PCMCIA slot.
Restauration Works
Right and middle mouse buttons did not work. Fixed by replacing E353R, E354R, E363R, E364R with ferrite beads.
Replaced the damaged original case with a black replica case.
Replaced all electrolytic capacitors with Panasonic (up to 10,000h lifetime) or Würth Elektronik (up to 5,000h lifetime) ones.
Replaced the floppy drive with a CenturionTech GOEX on pills floppy simulator + OLED display
Replaced the hard drive with a SD to IDE adapter and a raiser board that fixes the “LED always on” issue.
Replaced the original LED board with custom made LEDs (HDD: red, FDD: green, Power: blue).
Extended the system with HDMI output.
E123C and E125C (turbo expansion stability fix) were not populated, no need to take action.
Replaced many missing screws.
History
2024-06-30
Replaced misprinted diamond key with correct one
2023-12-30
Replaced Marpet Developments M1207 with PiStorm lite
2023-12-17
Updated EPROMs to AmigaOS 47.111
2022-12-24
Replaced original keycaps with black replica caps
Printed a new, slim OLED display for the GoEX drive. The original display was too large so the Amiga would not fit into the box again. Also, the new case looks a lot better.
Completed the holder for the eject button.
Assembled the system.
2022-10-08

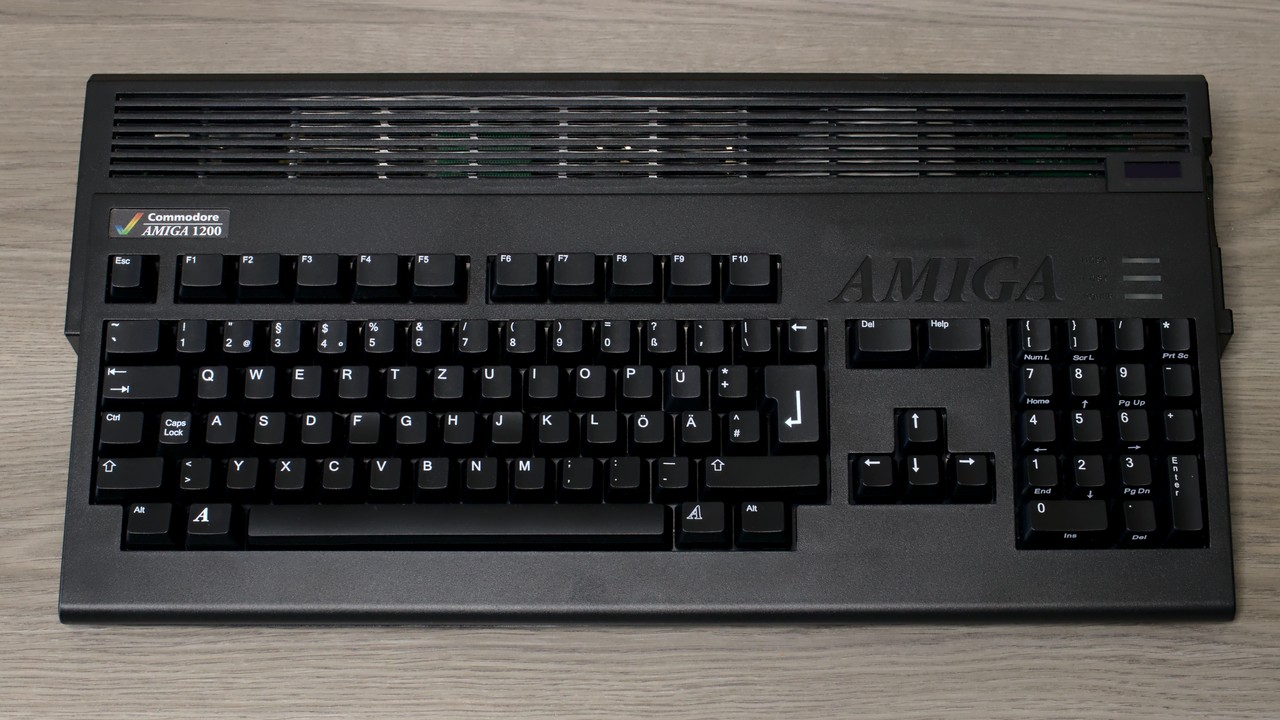

Moved the machine into a new, black replica case
Replaced original LED board with custom LEDs (red, green, blue)
Mounted a black GOEX drive
2022-10-04
Changed four SMD resistors to ferrite beads, in order to fix the joystick/mouse port issue
2022-08-21

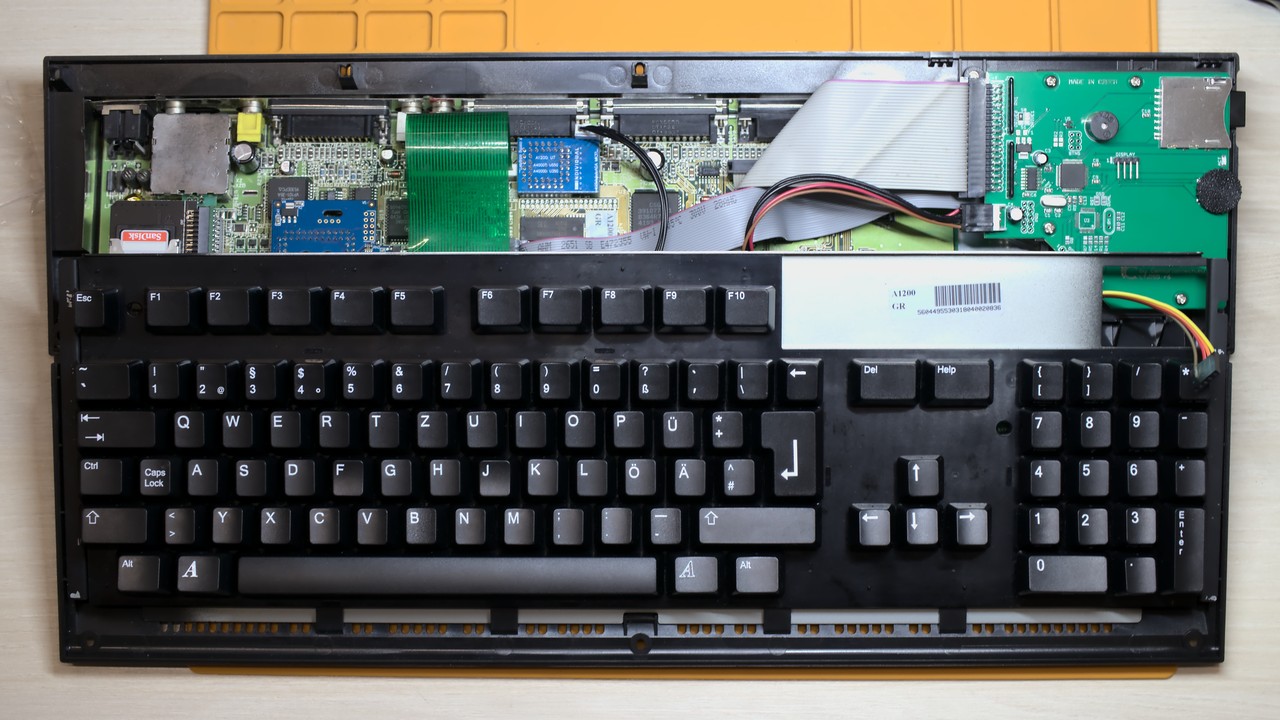

Recapped and cleaned the main board
Found an Escom floppy modification. Removed the bodge wire, and set a new wire for the cut /RDY line.
Added Indivision AGA
Added SD Card harddisk
2022-07-03: Restauration started
Removed Gotek drive
Keyboard disassembled and cleaned, keycaps sun whitened, replaced Caps Lock LED with a blue one
Case disassembled, cleaned, sun whitened (as good as possible)
