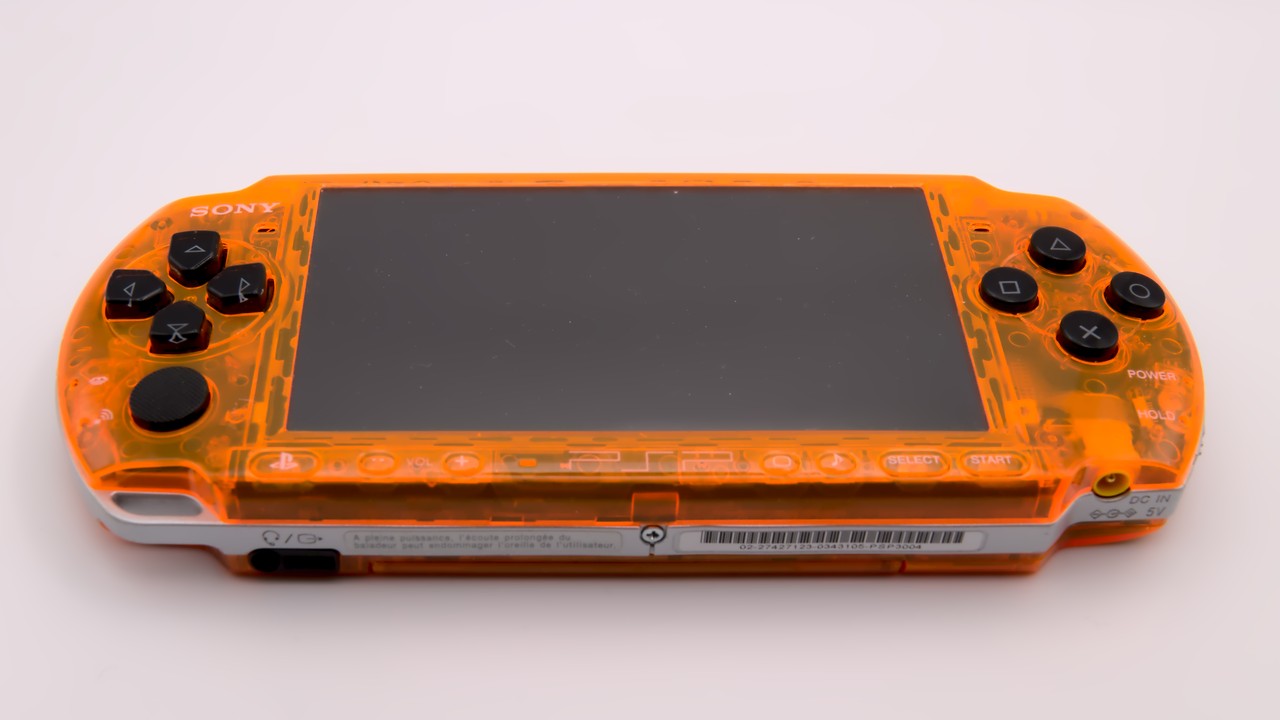

PlayStation Portable 3004, transparent orange (original color: black)
Motherboard: TA-093v1 (Bright 3004, Generation 4)
CPU: MIPS R4000, up to 333 MHz
RAM: 64 MB (main) + 4 MB (graphics)
Display: 480 x 272 Pixel, True Color
32 GB MicroSD via MemoryStick Pro Duo adapter
Trivia
Was sold in a bundle of two broken PSPs. My first intention was to keep them as spare part donors, but then I felt pity for the poor machines.
Restauration Works
Original LCD was broken and replaced with a replica (multiple times)
Moved components into a clear orange replica case
Replaced power jack with a new one
Replaced blown LCD backlight SMD fuse
New battery, as the old one was missing
Installed Infinity patch and LME CFW
History
2024-03-20
UMD drive tested and confirmed working
2023-11-28:
Finally mounted a new LCD
2022-12-22:
Replaced the SMD fuse. It exceeded the limits of my equipment, but I managed it. The backlight of the first LCD still stays dark, so that LCD is defective too. I guess that I caused a short on the backlight connector when I tried to fix it, blowing the fuse. For this reason the second replacement LCD also stayed dark.
2022-12-03:
Replaced power switch with replica
Tried another LCD, but backlight still stays dark. I suspect I blew the backlight fuse when I replaced the LCD.
2022-11-26:
Removed LCD with tiny scratches in favor of a new one (this LCD is used in the black model)
Power switch lever broke off
Backlight of new LCD stays dark, seems to be dead-on-arrival?
2022-11-13: Refurbished, moved into a clear orange case
